VRage.ModAPI.IMyVoxelBase Interface Reference

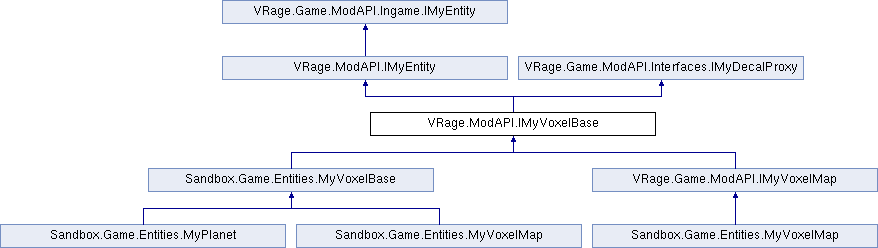

Inheritance diagram for VRage.ModAPI.IMyVoxelBase:

Public Member Functions
bool	IsBoxIntersectingBoundingBoxOfThisVoxelMap (ref BoundingBoxD boundingBox)
bool	AreAllAabbCornersInside (MatrixD aabbWorldTransform, BoundingBoxD aabb)
	Returns true if all corners of a boundingbox are inside a voxel. More...
bool	IsAnyAabbCornerInside (MatrixD aabbWorldTransform, BoundingBoxD aabb)
	Returns true if all corners of a boundingbox are inside a voxel. More...
int	CountCornersInside (MatrixD aabbWorldTransform, BoundingBoxD aabb)
	Returns the count of how many corners of a boundingbox are inside a voxel. More...
bool	IsOverlapOverThreshold (BoundingBoxD worldAabb, float thresholdPercentage=0.9f)
	Returns true if the bounding box contains at least the specified amount (as a percent) of voxel material. More...
void	VoxelCutoutSphere (Vector3D center, float radius, bool createDebris, bool damage)
	Cuts out the request volume from the voxel. More...
void	VoxelOperationCapsule (Vector3D A, Vector3D B, float radius, MatrixD Transformation, byte material, OperationType operation)
	Perform voxel operation using a capsule shape. More...
void	VoxelOperationBox (BoundingBoxD box, MatrixD Transformation, byte material, OperationType operation)
	Perform voxel operation using a box shape. More...
void	VoxelOperationElipsoid (Vector3 radius, MatrixD Transformation, byte material, OperationType operation)
	Perform voxel operation using a ellipsoid shape. More...
void	VoxelOperationRamp (BoundingBoxD box, Vector3D rampNormal, double rampNormalW, MatrixD Transformation, byte material, OperationType operation)
	Perform voxel operation using a ramp shape. More...
void	VoxelOperationSphere (Vector3D center, float radius, byte material, OperationType operation)
	Perform voxel operation using a sphere shape. More...
void	CreateMeteorCrater (Vector3D center, float radius, Vector3 normal, byte materialIdx)
	Creates a meteor crater on a voxel, depositing the specified material. Call on server. More...
Public Member Functions inherited from VRage.ModAPI.IMyEntity
string	GetFriendlyName ()
void	Close ()
void	Delete ()
MyObjectBuilder_EntityBase	GetObjectBuilder (bool copy=false)
void	BeforeSave ()
IMyEntity	GetTopMostParent (Type type=null)
void	SetLocalMatrix (VRageMath.Matrix localMatrix, object source=null)
void	GetChildren (List< IMyEntity > children, Func< IMyEntity, bool > collect=null)
MyEntitySubpart	GetSubpart (string name)
bool	TryGetSubpart (string name, out MyEntitySubpart subpart)
VRageMath.Vector3	GetDiffuseColor ()
bool	IsVisible ()
void	DebugDraw ()
void	DebugDrawInvalidTriangles ()
void	EnableColorMaskForSubparts (bool enable)
void	SetColorMaskForSubparts (VRageMath.Vector3 colorMaskHsv)
void	SetEmissiveParts (string emissiveName, Color emissivePartColor, float emissivity)
	Sets the emissive value of a specific emissive material on entity. More...
void	SetEmissivePartsForSubparts (string emissiveName, Color emissivePartColor, float emissivity)
	Sets the emissive value of a specific emissive material on all entity subparts. More...
float	GetDistanceBetweenCameraAndBoundingSphere ()
float	GetDistanceBetweenCameraAndPosition ()
float	GetLargestDistanceBetweenCameraAndBoundingSphere ()
float	GetSmallestDistanceBetweenCameraAndBoundingSphere ()
void	OnRemovedFromScene (object source)
void	OnAddedToScene (object source)
MatrixD	GetViewMatrix ()
MatrixD	GetWorldMatrixNormalizedInv ()
void	SetWorldMatrix (VRageMath.MatrixD worldMatrix, object source=null)
void	SetPosition (VRageMath.Vector3D pos)
bool	GetIntersectionWithLine (ref LineD line, out VRage.Game.Models.MyIntersectionResultLineTriangleEx?tri, IntersectionFlags flags)
Vector3	GetIntersectionWithLineAndBoundingSphere (ref LineD line, float boundingSphereRadiusMultiplier)
bool	GetIntersectionWithSphere (ref BoundingSphereD sphere)
void	GetTrianglesIntersectingSphere (ref BoundingSphereD sphere, Vector3?referenceNormalVector, float?maxAngle, System.Collections.Generic.List< MyTriangle_Vertex_Normals > retTriangles, int maxNeighbourTriangles)
bool	DoOverlapSphereTest (float sphereRadius, Vector3D spherePos)
void	AddToGamePruningStructure ()
void	RemoveFromGamePruningStructure ()
void	UpdateGamePruningStructure ()
Public Member Functions inherited from VRage.Game.ModAPI.Ingame.IMyEntity
VRageMath.Vector3D	GetPosition ()
Public Member Functions inherited from VRage.Game.ModAPI.Interfaces.IMyDecalProxy
void	AddDecals (MyHitInfo hitInfo, MyStringHash source, object customdata, IMyDecalHandler decalHandler, MyStringHash material)
	Parameters hitInfo Hithinfo on world coordinates More...

Properties
IMyStorage	Storage [get]
VRageMath.Vector3D	PositionLeftBottomCorner [get]
	Position of left/bottom corner of this voxel map, in world space (not relative to sector) More...
IMyVoxelBase	RootVoxel [get]
	Gets root voxel, for asteroids and planets itself. For MyVoxelPhysics, should return owning planet. More...
Matrix	Orientation [get]
string	StorageName [get]
Vector3I	Size [get]
	Size of voxel map (in voxels) More...
Vector3	SizeInMetres [get]
	Size of voxel map (in metres) More...
Vector3I	StorageMin [get]
Vector3I	StorageMax [get]
Properties inherited from VRage.ModAPI.IMyEntity
MyEntityComponentContainer	Components [get]
MyPhysicsComponentBase	Physics [get, set]
MyPositionComponentBase	PositionComp [get, set]
MyRenderComponentBase	Render [get, set]
MyEntityComponentBase	GameLogic [get, set]
MyHierarchyComponentBase	Hierarchy [get, set]
MySyncComponentBase	SyncObject [get]
MyModStorageComponentBase	Storage [get, set]
	Custom storage for mods. Shared with all mods. More...
EntityFlags	Flags [get, set]
long	EntityId [get, set]
string	Name [get, set]
bool	MarkedForClose [get]
bool	Closed [get]
bool	DebugAsyncLoading [get]
bool	Save [get, set]
MyPersistentEntityFlags2	PersistentFlags [get, set]
MyEntityUpdateEnum	NeedsUpdate [get, set]
IMyEntity	Parent [get]
Matrix	LocalMatrix [get, set]
bool	NearFlag [get, set]
bool	CastShadows [get, set]
bool	FastCastShadowResolve [get, set]
bool	NeedsResolveCastShadow [get, set]
float	MaxGlassDistSq [get]
bool	NeedsDraw [get, set]
bool	NeedsDrawFromParent [get, set]
bool	Transparent [get, set]
bool	ShadowBoxLod [get, set]
bool	SkipIfTooSmall [get, set]
bool	Visible [get, set]
bool	InScene [get, set]
bool	InvalidateOnMove [get]
new VRageMath.MatrixD	WorldMatrix [get, set]
VRageMath.MatrixD	WorldMatrixInvScaled [get]
VRageMath.MatrixD	WorldMatrixNormalizedInv [get]
bool	IsVolumetric [get]
BoundingBox	LocalAABB [get, set]
BoundingBox	LocalAABBHr [get]
BoundingSphere	LocalVolume [get, set]
Vector3	LocalVolumeOffset [get, set]
Vector3	LocationForHudMarker [get]
bool	IsCCDForProjectiles [get]
string	DisplayName [get, set]
Properties inherited from VRage.Game.ModAPI.Ingame.IMyEntity
MyEntityComponentContainer	Components [get]
long	EntityId [get]
VRageMath.BoundingBoxD	WorldAABB [get]
VRageMath.BoundingBoxD	WorldAABBHr [get]
VRageMath.MatrixD	WorldMatrix [get]
VRageMath.BoundingSphereD	WorldVolume [get]
VRageMath.BoundingSphereD	WorldVolumeHr [get]

Additional Inherited Members
Events inherited from VRage.ModAPI.IMyEntity
Action< IMyEntity >	OnClose
Action< IMyEntity >	OnClosing
Action< IMyEntity >	OnMarkForClose
Action< IMyEntity >	OnPhysicsChanged

Detailed Description

Definition at line 7 of file IMyVoxelBase.cs.

Member Function Documentation

bool VRage.ModAPI.IMyVoxelBase.AreAllAabbCornersInside	(	MatrixD	aabbWorldTransform,
		BoundingBoxD	aabb
	)

Returns true if all corners of a boundingbox are inside a voxel.

Parameters

aabbWorldTransform	VoxelMap transform
aabb	Area to check

Returns

int VRage.ModAPI.IMyVoxelBase.CountCornersInside	(	MatrixD	aabbWorldTransform,
		BoundingBoxD	aabb
	)

Returns the count of how many corners of a boundingbox are inside a voxel.

Parameters

aabbWorldTransform	VoxelMap transform
aabb	Area to check

Returns

void VRage.ModAPI.IMyVoxelBase.CreateMeteorCrater	(	Vector3D	center,
		float	radius,
		Vector3	normal,
		byte	materialIdx
	)

Creates a meteor crater on a voxel, depositing the specified material. Call on server.

Parameters

center
radius
normal	Direction crater opens (eg. towards meteor source)
materialIdx	Material to deposit.

bool VRage.ModAPI.IMyVoxelBase.IsAnyAabbCornerInside	(	MatrixD	aabbWorldTransform,
		BoundingBoxD	aabb
	)

Returns true if all corners of a boundingbox are inside a voxel.

Parameters

aabbWorldTransform	VoxelMap transform
aabb	Area to check

Returns

bool VRage.ModAPI.IMyVoxelBase.IsBoxIntersectingBoundingBoxOfThisVoxelMap

(

ref BoundingBoxD

boundingBox

)

Implemented in Sandbox.Game.Entities.MyVoxelBase.

bool VRage.ModAPI.IMyVoxelBase.IsOverlapOverThreshold	(	BoundingBoxD	worldAabb,
		float	thresholdPercentage = 0.9f
	)

Returns true if the bounding box contains at least the specified amount (as a percent) of voxel material.

Parameters

worldAabb
thresholdPercentage

Returns

Implemented in Sandbox.Game.Entities.MyVoxelBase, and Sandbox.Game.Entities.MyVoxelMap.

void VRage.ModAPI.IMyVoxelBase.VoxelCutoutSphere	(	Vector3D	center,
		float	radius,
		bool	createDebris,
		bool	damage
	)

Cuts out the request volume from the voxel.

Parameters

center
radius
createDebris
damage

void VRage.ModAPI.IMyVoxelBase.VoxelOperationBox	(	BoundingBoxD	box,
		MatrixD	Transformation,
		byte	material,
		OperationType	operation
	)

Perform voxel operation using a box shape.

Parameters

box
Transformation
material
operation

void VRage.ModAPI.IMyVoxelBase.VoxelOperationCapsule	(	Vector3D	A,
		Vector3D	B,
		float	radius,
		MatrixD	Transformation,
		byte	material,
		OperationType	operation
	)

Perform voxel operation using a capsule shape.

Parameters

A
B
radius
Transformation
material
operation

void VRage.ModAPI.IMyVoxelBase.VoxelOperationElipsoid	(	Vector3	radius,
		MatrixD	Transformation,
		byte	material,
		OperationType	operation
	)

Perform voxel operation using a ellipsoid shape.

Parameters

radius
Transformation
material
operation

void VRage.ModAPI.IMyVoxelBase.VoxelOperationRamp	(	BoundingBoxD	box,
		Vector3D	rampNormal,
		double	rampNormalW,
		MatrixD	Transformation,
		byte	material,
		OperationType	operation
	)

Perform voxel operation using a ramp shape.

Parameters

box
rampNormal
rampNormalW
Transformation
material
operation

void VRage.ModAPI.IMyVoxelBase.VoxelOperationSphere	(	Vector3D	center,
		float	radius,
		byte	material,
		OperationType	operation
	)

Perform voxel operation using a sphere shape.

Parameters

center
radius
material
operation

Property Documentation

Matrix VRage.ModAPI.IMyVoxelBase.Orientation

get

Definition at line 24 of file IMyVoxelBase.cs.

VRageMath.Vector3D VRage.ModAPI.IMyVoxelBase.PositionLeftBottomCorner

get

Position of left/bottom corner of this voxel map, in world space (not relative to sector)

Definition at line 14 of file IMyVoxelBase.cs.

IMyVoxelBase VRage.ModAPI.IMyVoxelBase.RootVoxel

get

Gets root voxel, for asteroids and planets itself. For MyVoxelPhysics, should return owning planet.

Definition at line 22 of file IMyVoxelBase.cs.

Vector3I VRage.ModAPI.IMyVoxelBase.Size

get

Size of voxel map (in voxels)

Definition at line 34 of file IMyVoxelBase.cs.

Vector3 VRage.ModAPI.IMyVoxelBase.SizeInMetres

get

Size of voxel map (in metres)

Definition at line 39 of file IMyVoxelBase.cs.

IMyStorage VRage.ModAPI.IMyVoxelBase.Storage

get

Definition at line 9 of file IMyVoxelBase.cs.

Vector3I VRage.ModAPI.IMyVoxelBase.StorageMax

get

Definition at line 42 of file IMyVoxelBase.cs.

Vector3I VRage.ModAPI.IMyVoxelBase.StorageMin

get

Definition at line 41 of file IMyVoxelBase.cs.

string VRage.ModAPI.IMyVoxelBase.StorageName

get

Definition at line 27 of file IMyVoxelBase.cs.

---

The documentation for this interface was generated from the following file:

• Sources/VRage.Game/ModAPI/IMyVoxelBase.cs
