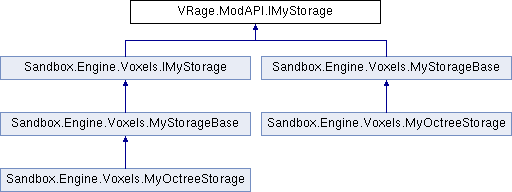

Inheritance diagram for VRage.ModAPI.IMyStorage:

Public Member Functions
void	Save (out byte[] outCompressedData)
	Gets compressed voxel data More...

void	OverwriteAllMaterials (byte materialIndex)
	Replaces all materials in range with the specific material More...

ContainmentType	Intersect (ref BoundingBox box, bool lazy)
	Returns the intersection with the storage region More...

bool	Intersect (ref LineD line)
	Returns true if the specific line intersects the storage region More...

void	PinAndExecute (Action action)
	Pins the voxel storage to prevent closing, then executes specified action. Unpins when action completes. More...

void	PinAndExecute (Action< IMyStorage > action)
	Pins the voxel storage to prevent closing, then executes specified action. Unpins when action completes. More...

void	Reset (MyStorageDataTypeFlags dataToReset)
	Resets the data specified by flags to values from data provider, or default if no provider is assigned. More...

void	ReadRange (MyStorageData target, MyStorageDataTypeFlags dataToRead, int lodIndex, Vector3I lodVoxelRangeMin, Vector3I lodVoxelRangeMax)
	Reads range of content and/or materials from specified LOD. If you want to write data back later, you must read LOD0 as that is the only writable one. More...

void	ReadRange (MyStorageData target, MyStorageDataTypeFlags dataToRead, int lodIndex, Vector3I lodVoxelRangeMin, Vector3I lodVoxelRangeMax, ref MyVoxelRequestFlags requestFlags)
	Reads range of content and/or materials from specified LOD. If you want to write data back later, you must read LOD0 as that is the only writable one. More...

void	WriteRange (MyStorageData source, MyStorageDataTypeFlags dataToWrite, Vector3I voxelRangeMin, Vector3I voxelRangeMax)
	Writes range of content and/or materials from cache to storage. Note that this can only write to LOD0 (higher LODs must be computed based on that). More...

Properties
bool	Closed `[get]`
	Returns true if voxel storage was closed More...

bool	MarkedForClose `[get]`
	Returns true if the voxel storage is marked for a pending close More...

Vector3I	Size `[get]`
	The size of the voxel storage, in voxels More...

Detailed Description

Definition at line 7 of file IMyStorage.cs.

Member Function Documentation

ContainmentType VRage.ModAPI.IMyStorage.Intersect	(	ref BoundingBox	box,
		bool	lazy
	)

Returns the intersection with the storage region

Parameters

box
lazy

Returns

Implemented in Sandbox.Engine.Voxels.MyStorageBase, and Sandbox.Engine.Voxels.IMyStorage.

bool VRage.ModAPI.IMyStorage.Intersect ( ref LineD line )

Returns true if the specific line intersects the storage region

Parameters

line

Returns

Implemented in Sandbox.Engine.Voxels.MyStorageBase, and Sandbox.Engine.Voxels.IMyStorage.

void VRage.ModAPI.IMyStorage.OverwriteAllMaterials ( byte materialIndex )

Replaces all materials in range with the specific material

Parameters

materialIndex

void VRage.ModAPI.IMyStorage.PinAndExecute ( Action action )

Pins the voxel storage to prevent closing, then executes specified action. Unpins when action completes.

Parameters

action Action to execute

void VRage.ModAPI.IMyStorage.PinAndExecute ( Action< IMyStorage > action )

Pins the voxel storage to prevent closing, then executes specified action. Unpins when action completes.

Parameters

action Action to execute

void VRage.ModAPI.IMyStorage.ReadRange	(	MyStorageData	target,
		MyStorageDataTypeFlags	dataToRead,
		int	lodIndex,
		Vector3I	lodVoxelRangeMin,
		Vector3I	lodVoxelRangeMax
	)

Reads range of content and/or materials from specified LOD. If you want to write data back later, you must read LOD0 as that is the only writable one.

Parameters

target
dataToRead
lodIndex
lodVoxelRangeMin	Inclusive.
lodVoxelRangeMax	Inclusive.

void VRage.ModAPI.IMyStorage.ReadRange	(	MyStorageData	target,
		MyStorageDataTypeFlags	dataToRead,
		int	lodIndex,
		Vector3I	lodVoxelRangeMin,
		Vector3I	lodVoxelRangeMax,
		ref MyVoxelRequestFlags	requestFlags
	)

Reads range of content and/or materials from specified LOD. If you want to write data back later, you must read LOD0 as that is the only writable one.

Parameters

target
dataToRead
lodIndex
lodVoxelRangeMin
lodVoxelRangeMax
requestFlags

void VRage.ModAPI.IMyStorage.Reset ( MyStorageDataTypeFlags dataToReset )

Resets the data specified by flags to values from data provider, or default if no provider is assigned.

Parameters

dataToReset

Implemented in Sandbox.Engine.Voxels.MyStorageBase.

void VRage.ModAPI.IMyStorage.Save ( out byte[] outCompressedData )

Gets compressed voxel data

Implemented in Sandbox.Engine.Voxels.MyStorageBase.

void VRage.ModAPI.IMyStorage.WriteRange	(	MyStorageData	source,
		MyStorageDataTypeFlags	dataToWrite,
		Vector3I	voxelRangeMin,
		Vector3I	voxelRangeMax
	)

Writes range of content and/or materials from cache to storage. Note that this can only write to LOD0 (higher LODs must be computed based on that).

Parameters

source
dataToWrite
voxelRangeMin	Inclusive.
voxelRangeMax	Inclusive.

Property Documentation

bool VRage.ModAPI.IMyStorage.Closed

get

Returns true if voxel storage was closed

Definition at line 12 of file IMyStorage.cs.

bool VRage.ModAPI.IMyStorage.MarkedForClose

get

Returns true if the voxel storage is marked for a pending close

Definition at line 17 of file IMyStorage.cs.

Vector3I VRage.ModAPI.IMyStorage.Size

get

The size of the voxel storage, in voxels

Definition at line 27 of file IMyStorage.cs.

The documentation for this interface was generated from the following file:

Sources/VRage.Game/ModAPI/IMyStorage.cs
